The versatility of our Rivetwell boltless shelving system allows you to mix and match components to meet your unique application
Boltless shelving is designed to maximize storage space and minimize installation set-up time.
Easy Assembly
Easy Assembly

Boltless shelving easily fits into place without any screwdriver or wrenches. Shelves adjust in 1-1/2" increments.

Product Overview
Double Rivet Starter

Double Rivet Starter

Double Rivet Adder

Double Rivet Adder

Double Rivet Boltless Shelving

Boltless shelving is a type of shelving that is designed to be easy to assemble and disassemble. It is made up of a series of vertical posts and horizontal beams that are connected by rivets. The rivets align with keyhole slots in the vertical posts. Once tapped into place using a standard rubber mallet, the units are tightly assembled to provide maximum strength.

Starter Units consist of four standard angle posts, *two left-to-right standard double rivet angle/channel beams per level and two front-to-back standard double rivet angle beams per level.

Adder Units consist of two standard T-Posts, *two left-to-right standard double rivet angle/channel beams per level, and two front-to-back standard double rivet angle beams per level.
*Channel beam units are provided with left-to-right double rivet angle beams at the bottom level.

When designing a shelving layout, unit growth must be considered. To determine the overall dimension of a continuous row of shelving employing T-Posts or Angle Posts with tie plates refer to the table HERE.

Post Capacity Chart & Beam Load Table HERE

Be sure to order decking per level.

Rivetwell particle board and E-Z deck capacity ratings HERE

Your Choice of Decking - simply drop into place:
Particleboard: HPB 5/8" thick industrial grade 1-M-2

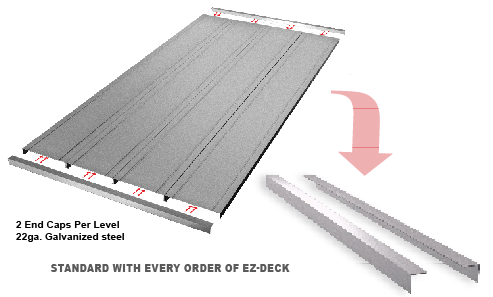

EZ-Deck Steel Decking: HEZD 22ga. Galvanized steel. Multiple 6" deep planks form each level. Two 7.5" planks on 15" deep units.

 Flat Wire Decking: HWD 4 gauge wire in 2" x 4" pattern.

Shelf strength can be increased by adding single rivet beam or double rivet angle beam or double rivet channel beams beams running front-to-back at the intermediate levels.

See Below for Components.

• All units/components available in Tan (PT)
• Select units/components available in Black (ME)
• See charts for stock availability of Tan or Black

See also - Rivetwell Single Rivet Shelving

Catalog
DOUBLE RIVET UNITS - 84'' HIGH WITH 4 LEVELS
  Without Center Support With Center Support Color Selection

Decking

(Decking Not Included) (Decking Not Included)
Width Beam Type Depth Shelf Cap Starter Model No. Adder Model No. Shelf Cap Starter Model No. Adder Model No.   Particle Board Decking EZ-Deck Steel Decking
48" Standard Angle Beam 18 550 DRS481884-4S DRS481884-4A 875 DRSC481884-4S DRSC481884-4A PT, ME HPB4818 HEZD4818
24 550 DRS482484-4S DRS482484-4A 875 DRSC482484-4S DRSC482484-4A PT, ME HPB4824 HEZD4824
30 550 DRS483084-4S DRS483084-4A 825 DRSC483084-4S DRHC483084-4A PT, ME HPB4830 HEZD4830
36 550 DRS483684-4S DRS483684-4A 700 DRSC483684-4S DRSC483684-4A PT, ME HPB4836 HEZD4836
48 550 DRS484884-4S DRS484884-4A 1125 DRSC484884-4S DRSC484884-4A PT, ME HPB4848 HEZD4848
48" Heavy-Duty Angle 18 750 DRH481884-4S DRH481884-4A 1400 DRHC481884-4S DRHC481884-4A PT, ME HPB4818 HEZD4818
24 750 DRH482484-4S DRH482484-4A 1400 DRHC482484-4S DRHC482484-4A PT, ME HPB4824 HEZD4824
30 750 DRH483084-4S DRH483084-4A 1310 DRHC483084-4S DRHC483084-4A PT, ME HPB4830 HEZD4830
36 750 DRH483684-4S DRH483684-4A 1220 DRHC483684-4S DRHC483684-4A PT, ME HPB4836 HEZD4836
48 750 DRH484884-4S DRH484884-4A 1125 DRHC484884-4S DRHC484884-4A PT, ME HPB4848 HEZD4848
60" Heavy-Duty Angle Beam 18 600 DRH601884-4S DRH601884-4A 1200 DRHC601884-4S DRHC601884-4A PT, ME HPB6018 HEZD4818
24 600 DRH602484-4S DRH602484-4A 1200 DRHC602484-4S DRHC602484-4A PT, ME HPB6024 HEZD6024
30 600 DRH603084-4S DRH603084-4A 1200 DRHC603084-4S DRHC603084-4A PT, ME HPB6030 HEZD6030
36 600 DRH603684-4S DRH603684-4A 1200 DRHC603684-4S DRHC603684-4A PT, ME HPB6036 HEZD6036
48 600 DRH604884-4S DRH604884-4A 1200 DRHC604884-4S DRHC604884-4A PT, ME HPB6048 HEZD6048
60" Channel Beam 18 - - - 2000 DRCC601884-4S DRCC601884-4A PT HPB6018 HEZD6018
24 - - - 2000 DRCC602484-4S DRCC602484-4A PT HPB6024 HEZD6024
30 - - - 2000 DRCC603084-4S DRCC603084-4A PT HPB6030 HEZD6030
36 - - - 2000 DRCC603684-4S DRCC603684-4A PT HPB6036 HEZD6036
48 - - - 2000 DRCC604884-4S DRCC604884-4A PT HPB6048 HEZD6048
72" Heavy-Duty Angle Beam 18 500 DRH721884-4S DRH721884-4A 1000 DRHC721884-4S DRHC721884-4A PT, ME HPB6018 HEZD6018
24 500 DRH722484-4S DRH722484-4A 1000 DRHC722484-4S DRHC722484-4A PT, ME HPB6024 HEZD6024
30 500 DRH723084-4S DRH723084-4A 1000 DRHC723084-4S DRHC723084-4A PT, ME HPB6030 HEZD6030
36 500 DRH723684-4S DRH723684-4A 1000 DRHC723684-4S DRHC723684-4A PT, ME HPB6036 HEZD6036
48 500 DRH724884-4S DRH724884-4A 1000 DRHC724884-4S DRHC724884-4A PT, ME HPB6048 HEZD6048
72" Channel Beam 18 - - - 1850 DRCC721884-4S DRCC721884-4A PT HPB7218 HEZD7218
24 - - - 1850 DRCC722484-4S DRCC722484-4A PT HPB7224 HEZD7224
30 - - - 1850 DRCC723084-4S DRCC723084-4A PT HPB7230 HEZD7230
36 - - - 1850 DRCC723684-4S DRCC723684-4A PT HPB7236 HEZD7236
48 - - - 1850 DRCC724884-4S DRCC724884-4A PT HPB7248 HEZD7248
96" Heavy-Duty Angle Beam 18 - - - 620 DRHC961884-4S DRHC961884-4A PT, ME HPB7218 HEZD7218
24 - - - 620 DRHC962484-4S DRHC962484-4A PT, ME HPB7224 HEZD7224
30 - - - 620 DRHC963084-4S DRHC963084-4A PT, ME HPB7230 HEZD7230
36 - - - 620 DRHC963684-4S DRHC963684-4A PT, ME HPB7236 HEZD7236
48 - - - 620 DRHC964884-4S DRHC964884-4A PT, ME HPB7248 HEZD7248
96" Channel Beam 18 - - - 1400 DRCC961884-4S DRCC961884-4A PT HPB9618 HEZD9618
24 - - - 1400 DRCC962484-4S DRCC962484-4A PT HPB9624 HEZD9624
30 - - - 1400 DRCC963084-4S DRCC963084-4A PT HPB9630 HEZD9630
36 - - - 1400 DRCC963684-4S DRCC963684-4A PT HPB9636 HEZD9636
48 - - - 1400 DRCC964884-4S DRCC964884-4A PT HPB9648 HEZD9648
DOUBLE RIVET UNITS - 120" HIGH WITH 5 LEVELS
72" Heavy-Duty Angle Beam 30 500 DRH7230120-5S DRH7230120-5A 1000 DRHC7230120-5S DRHC7230120-5A PT HPB7230 HEZD7230
36 500 DRH7236120-5S DRH7236120-5A 1000 DRHC7236120-5S DRHC7236120-5A PT HPB7236 HEZD7236
48 500 DRH7248120-5S DRH7248120-5A 1000 DRHC7248120-5S DRHC7248120-5A PT HPB7248 HEZD7248
72" Channel Beam 30 - - - 1490 DRCC7230120-5S DRCC7230120-5A PT HPB7230 HEZD7230
36 - - - 1490 DRCC7236120-5S DRCC7236120-5A PT HPB7236 HEZD7236
48 - - - 1490 DRCC7248120-5S DRCC7248120-5A PT HPB7248 HEZD7248
96" Heavy-Duty Angle Beam 30 - - - 620 DRHC9630120-5S DRHC9630120-5A PT HPB9630 HEZD9630
36 - - - 620 DRHC9636120-5S DRHC9636120-5A PT HPB9636 HEZD9636
48 - - - 620 DRHC9648120-5S DRHC9648120-5A PT HPB9648 HEZD9648
96" Channel Beam 30 - - - 1400 DRCC9630120-5S DRCC9630120-5A PT HPB9630 HEZD9630
36 - - - 1400 DRCC9636120-5S DRCC9636120-5A PT HPB9636 HEZD9636
48 - - - 1400 DRCC9648120-5S DRCC9648120-5A PT HPB9648 HEZD9648
Rivetwell
Flat Wire Decking
Part Number Size (inches)    W x D Wire Supports *Capacity
 (Lbs)
HWD3618 36" x 18" 4 725
HWD3624

36" x 24" 4 605
HWD3630 36" x 30" 4 485
HWD3636  36" x 36" 4 455
HWD3648  36" x 48" 4 300
HWD4818 48" x 18" 5 725
HWD4824 48" x 24" 5 605
HWD4830 48" x 30"  5 485
HWD4836  48" x 36"  5 455
HWD4848  48" x 48"  5 300
HWD6018 60" x 18"  6 725
HWD6024  60" x 24" 6 605
HWD6030 60" x 30" 6 485
HWD6036 60" x 36" 6 455
HWD6048 60" x 48" 6 300



Components

Components

Rivetwell - Angle Post

Angle Post (Standard-Duty)
APS ( HEIGHT 3' THROUGH 16' )

1-1/2" x 1-1/2" x 14 gauge cold rolled steel corner post uprights. Perfect for standard load situations.

Rivetwell - Angle Post

Angle Post (Heavy-Duty)
APH ( HEIGHT 6' THROUGH 16' )

Shall be 1-7/8" x 1-7/8" x 14 gauge cold rolled steel uprights. The choice when heavy-duty shelving is required. Perfect for multilevel installations.

Rivetwell - T-Post

T-Post (Standard-Duty)
TPS ( HEIGHT 3' THROUGH 16' )

3" x 1-7/8" x 14 gauge cold rolled steel. Punched for self-adjustment on 1-1/2" centers.

Rivetwell - T-Post

T-Post (Heavy-Duty)
TPH ( HEIGHT 3' THROUGH 16" )

3-3/4" x 1-7/8" x 14 gauge cold rolled steel intermediate uprights.

Double Row & Top Tie

Double Row & Top Tie
DRTT ( LENGTHS 9.25" THROUGH 48.25" )

Use to space back-to-back units and to top-tie rows across aisle for added stability.

Rivetwell - Double Rivet Angle Beam

Double Rivet Angle Beam (Standard-Duty)
ABS ( Lengths 12" through 42" )

This 16 gauge shelf beam is essential for stability of standard units; therefore, is used on all four sides at the top and bottom levels. Can also be used front and back or on all four sides of intermediate levels to increase unit stability and load capacity.

Wall Tie

Wall Tie
WT09

Used to secure units to wall and provide space between wall and unit ( hardware not included to attached to wall )

Rivetwell - Double Rivet Angle Beam

Double Rivet Angle Beam (Heavy-Duty)
ABH ( lengths 48" through 96" )

Our heavy-duty double rivet angle beams provide additional unit rigidity for greater spans and higher shelf capacity.

Rivetwell - Double Rivet Channel Beam

Double Rivet Channel Beam
CBH ( LENGTHS 48" THROUGH 96" )

Maximized left-to-right shelf capacity is achieved using our 14 gauge double rivet channel beams in lieu of double rivet angle beams. These beams cannot be used at the bottom level.

Rivetwell - Center Support

Center Support
CS ( LENGTHS 12" THROUGH 48" )

 Used to provide additional shelf support front-to-back by bolting between double rivet beams at prepunched locations. Ideal for wider spans.

Tie Plate

Tie Plate
TP1

Used for structural integrity of T-Post and to join Angle Post units side by side to ensure proper row alignment.

Rivetwell - Double Rivet Z-Beam (Standard Duty)

Double Rivet Z-Beam (Standard Duty)
ZBS ( LENGTHS 12" THROUGH 60" )

Used in place of double rivet angle beams to add 1" additional clearance between shelf levels. Allows particle board decking to sit flush with beam. Protects decking edges. When used at bottom level of single rivet units, shelf clearance is increased by 1" at lower level. Standard Z beams are 14 gauge.

Rivetwell - Double Rivet Z-Beam (Heavy Duty)

Double Rivet Z-Beam (Heavy Duty)
ZBH ( LENGTHS 48" THROUGH 72" )

Used in place of double rivet angle beams to add 1" additional clearance between shelf levels. Allows particle board decking to sit flush with beam. Protects decking edges. Heavy-Duty Z beams are 14 gauge

Center Support for Z-Beams

Center Support for Z-Beams
ZC ( LENGTHS 24" THROUGH 48" )

Used with Z-Beams for front-to-back decking support. Fabricated of 11 gauge cold rolled steel.

Coat Rod Support Beam

Coat Rod Support Beam
ABH ( LENGTHS 18" THROUGH 48" )

For supporting Rivetwell coat rods

RCR  Rivetwell Coat Rod

RCR Rivetwell Coat Rod
RCR ( LENGTHS 36" THROUGH 72" )

For use with coat rods and support beams

Colors

Please Note: Color selection is limited by catalog number - see above chart.

Color Selection:

#221f1a
708 Black (ME)
#dad8b1
729 Tan (PT)
