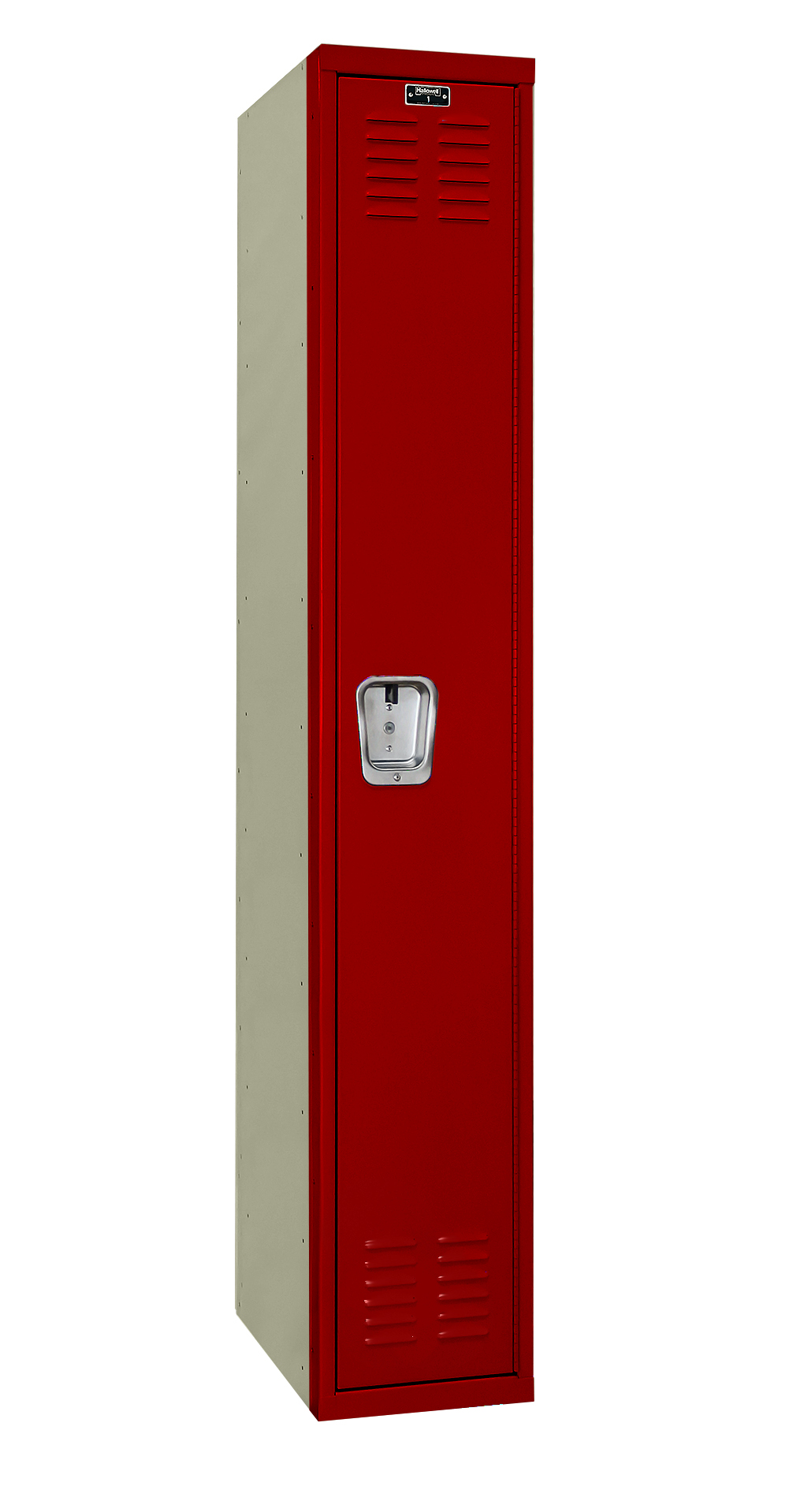

Heavy-Duty Corridor lockers, commonly known as HDC lockers,
Designed to include all the great features of our Standard KD wardrobe lockers with the doors upgraded to 14 gauge.
Deep-drawn 304 stainless steel recessed handle with Gravity Lift
304 Stainless Steel Recessed Handle



Deep-drawn 304 stainless steel recessed handle multi-point gravity-lift type latching.

Louvers for discrete ventilation
Louvers

Louvers at the top and bottom provide discrete ventilation with an attractive appearance.

Full Length Piano Hinge
Piano Hinge

A full-length piano hinge runs from the top to the bottom of the door and provides sturdy and smooth door operation.

Product Overview
Heavy-Duty Corridor lockers, commonly known as HDC lockers

Designed to include all the great features of our Standard KD wardrobe lockers with the doors upgraded to 14 gauge.

Single tier provides ample height for the hanging of full-length garments.

Double tier where the full-length hanging of garments is not required double tier lockers offers an economical alternative.

Triple tier lockers are ideal for use where the storage of long garments is not required.

Body/Frame Description:
Knock down with 24 gauge solid body components, 16 gauge frame with 16 gauge horizontal cross member between doors on double and triple tier wardrobe lockers
Body/Frame:
KD
Doors:
14 gauge louvered doors are standard. Plain, Secure-Air-Flow, Safety-View and diamond perforated door styles are available
Door Strike:
Continuous vertical door strike at both hinge and latch side
Handle:

Deep-drawn seamless stainless steel recessed handle

Latching:
12 gauge latch hooks MIG welded to frame. Gravity lift-type multi-point spring loaded latching: 3-point latching for openings 48" high and higher, 2-point latching for openings 20" high thru 36" high
Hinges:
16 gauge continuous piano hinge
Hooks:
2-single hooks and 1-double hook is standard. 1- double hook only for triple tier and 1-double and 1- single hook for 9" wide openings 30" and higher
Coat Rods:
none
Shelves:
Hat shelf for single tier openings 60" and 72" high
Legs:
All production KD lockers are supplied without legs unless otherwise specified
Catalog

KD Locker Sizes

Width

Depth

Opening Height

Frame Height

Single Tier

9" 12" 15" 18" 24"

12" 15" 18" 21" 24"

36" 48" 60" 72"

36" 48" 60" 72"

Double Tier

9" 12" 15" 18"

12" 15" 18" 21"

30" 36"

60" 72"

Triple Tier

9" 12" 15" 18''

12" 15" 18" 21''

20" 24"

60" 72"

Colors

Color Selection:

#004771
719 Jersey Blue
#b81528
721 Relay Red (RR)
#d4d4d4
711 Light Gray (PL)
#6f2429
727 Maroon
#9dadaa
706 Heather
#221f1a
708 Black (ME)
#7a918b
725 Dark Gray (HG)
#FFFFFF
714 Snow White
#342e30
745 Deep Forest Brown
#353d40
738 Charcoal
#00513f
704 Evergreen
#454699
720 Pep Rally Purple (PR)
#b2c1cc
740 Stardew Gray
#a3a598
710 Sandstone
#fad149
741 Rayo de Sol
#dad8b1
729 Tan (PT)
#ec782d
728 Hoop Orange (HP)
#3d7da0
707 Marine Blue (MB)
#0c5894
717 Grand Slam Blue (GS)
